City Nest – Wahalaan Oudergem

Architectural Project Design

Location: Wahalaan 11, 1160 Oudergem

Floor-area: 500m²

Type of property: Studio

---

This project includes a top-up on an existing school building with a pitched roof and outdoor space. The following programme is provided in the building:

Temporary residential accomodation and a community space, the accomodations consist of studio’s for one person and studios for two people.

Architectural Project Performance

Type of construction: Timber construction

Software: Archicad

---

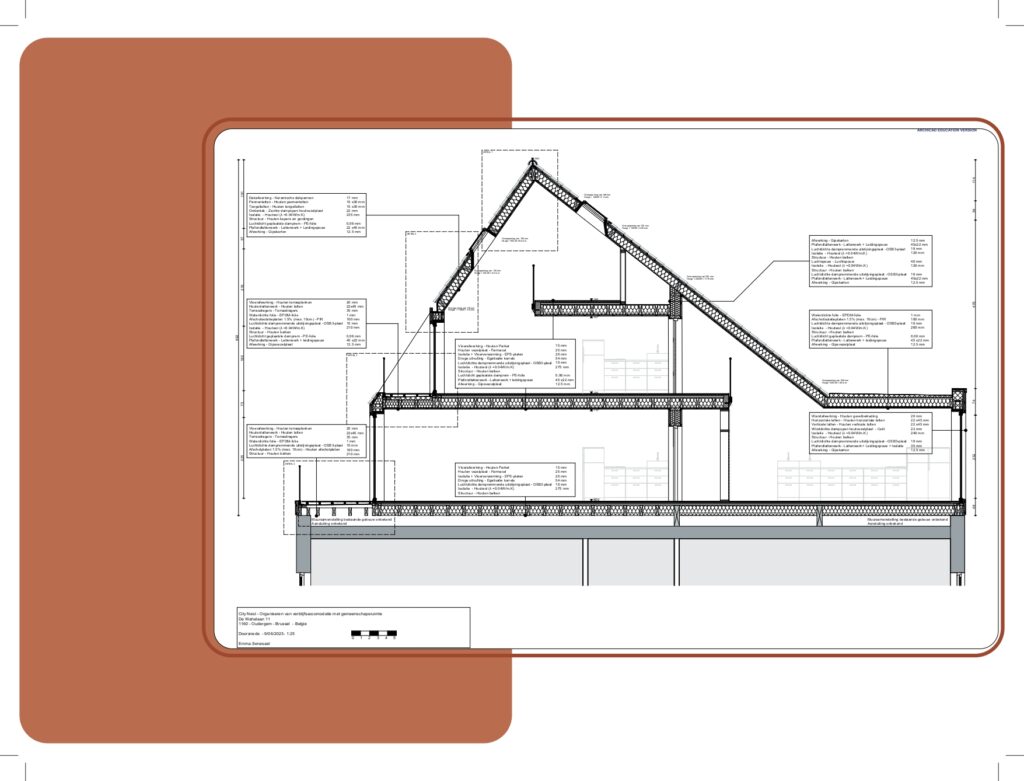

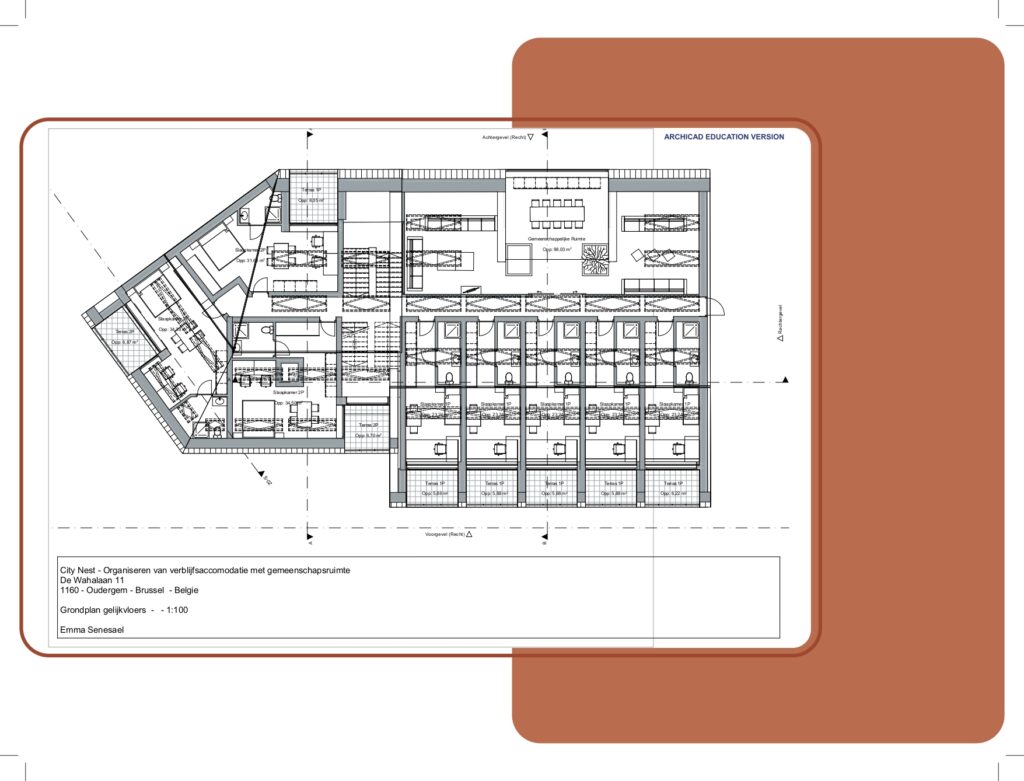

Process your design into constructive drawings consisting of one section, four details, four elevations and three floorplans on a existing building. The building will be constructed with a timber construction on the existing concrete skeleton.

---

Integration “Bouwtechnieken”:

The student will develop a situation plan and a one-wire diagram of a studio.

The student will develop a heat loss calculation of a studio.

Integration “Bouwbestekken”:

The student will prepare a material-technical implementation specification for a partial aspect of the implementation design, with the associated detailed measurement statement and layout of a construction node indicating the articles of materials according to the special specification.

Integration “Duurzaamheid”:

The student tests the execution design against the sustainable building standard.

Architectural Visualizations

Software: Photoshop, Indesign, 3ds Max & Archicad

---

“BIM” Visualizations:

Create a BIM model of a simple architectural project in a real urban planning context with Archicad in function of an execution file.

“Lay-outtechnieken” Visualizations:

Students learn the basics of digital graphic techniques with Indesign sush as general skills, illustrations, text, drawing and layout.

“Rendertechnieken” Visualizations:

Students deepen their understanding of digital graphic techniques using 3ds Max.

Presenting an architectural project with graphics and layout techniques using 3ds Max and Indesign. The assignment results in a graphic sales brochure of the architecture project.
